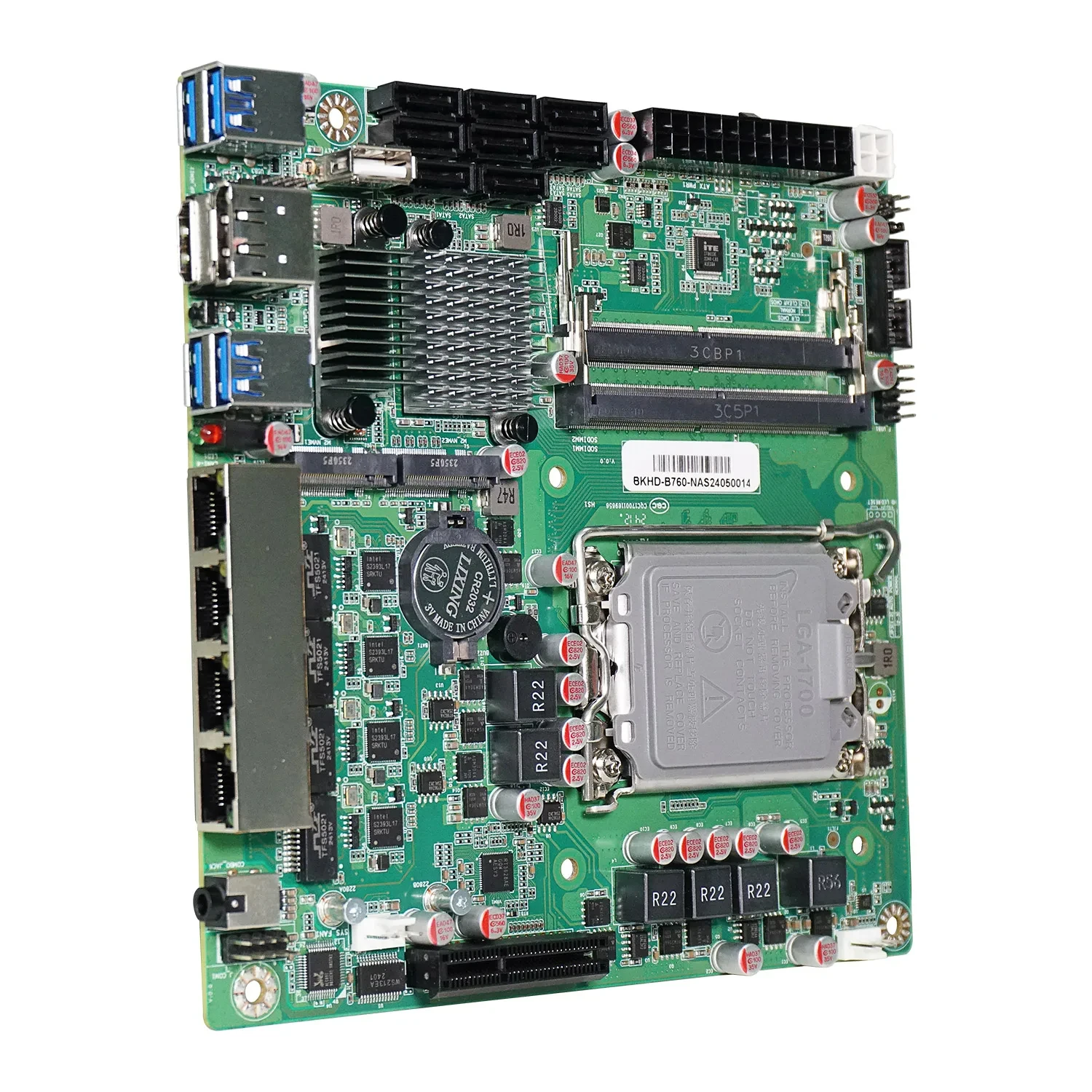

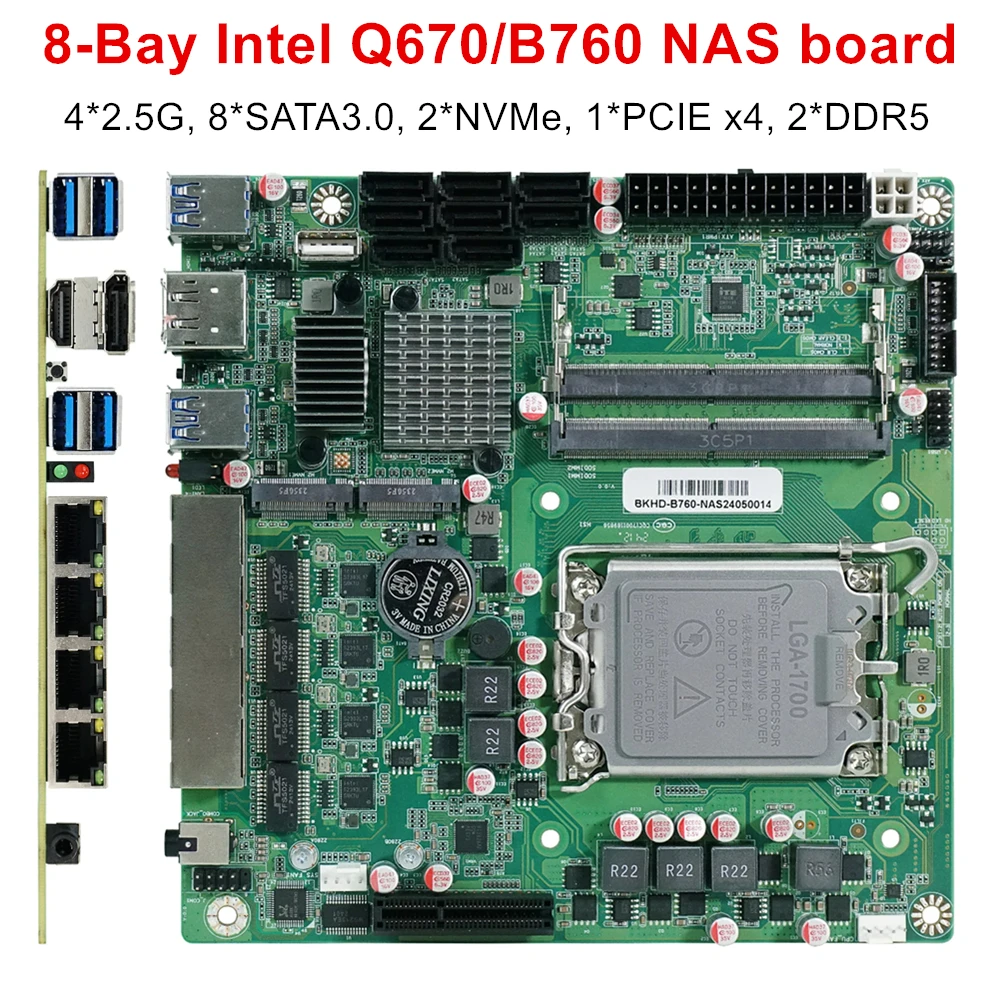

Topton Q670 B760 8-Bay NAS Motherboard Intel 12-14th LGA1700 8*SATA 2*NVMe 4*2.5G 1*PCIEX4 2*DDR5 Firewall Mini ITX Mainboard
价格范围：$196.35 至 $207.67
描述
- Battery Included: no
- High-concerned chemical: None
- Model Number: N16
- Type: Embedded Industrial Motherboard
- Brand Name: Topton
- Origin: Mainland China
Notice
1. Must work with a good 115X radiator, please buy bundle with radiator if you do not have.
2. Must connect 24pins+4pins ATX 12V power supply at the same time to power on.
3. Do not use intel F series CPU because it is lack of intel integrated graphic, can not display! Suggest to use T series CPU!
4. Every new motherboard was tested with radiator totally before shipping, that is why copper plate seems to get traces of thermal grease.

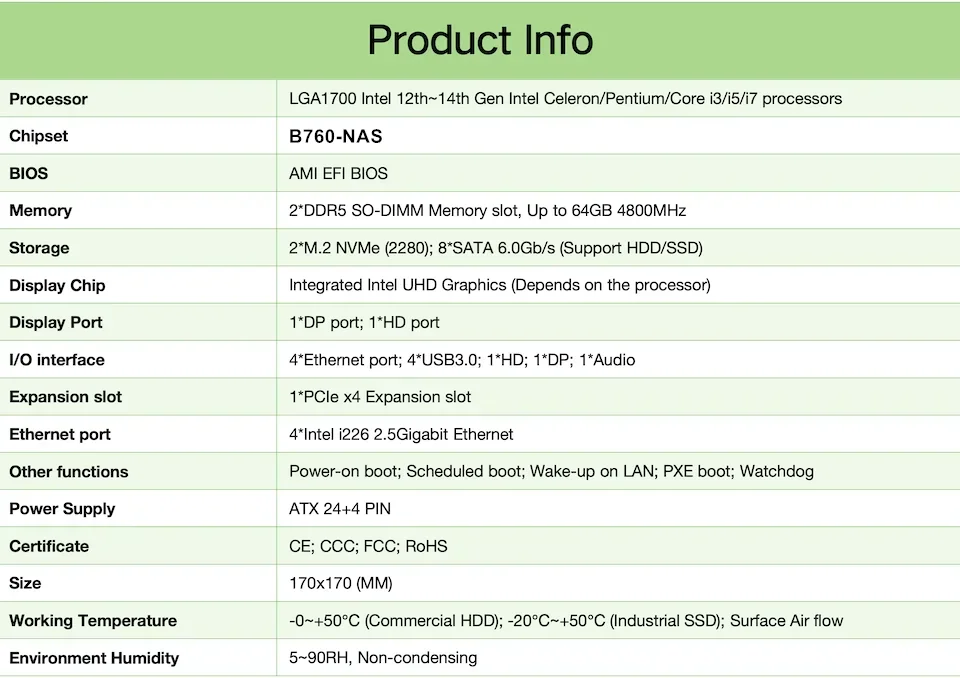

Product Specifications:
|
Model |
B760-NAS-MB |
Q670-NAS-MB |
||
|
Processor |
LGA1700 Socket Intel 12th to 14th Gen Celeron/Pentium/Core i3/i5/i7/i9 |
LGA1700 Socket Intel 12th to 14th Gen Celeron/Pentium/Core i3/i5/i7/i9 |
||
|
Chipset |
B760(do not support Intel vPro) |
Q670 (support Intel vPro) |
||
|
BIOS |
AMI EFI BIOS (UEFI only) |
AMI EFI BIOS (UEFI only) |
||
|
Memory |
2*DDR5 SO-DIMM Memory slot, Up to 96GB 4800MHz |
2*DDR5 SO-DIMM Memory slot, Up to 96GB 4800MHz |
||
|
Storage |
2*M.2 2280 SSD;3*SATA 6Gb/s, 5*SATA (SATA Controller JMB585) |
2*M.2 2280 SSD;8*SATA 6Gb/s, (Support RAID 0,1,5,10) |
||
|
Ethernet Controller |
4*Intel i226-V 2.5G |

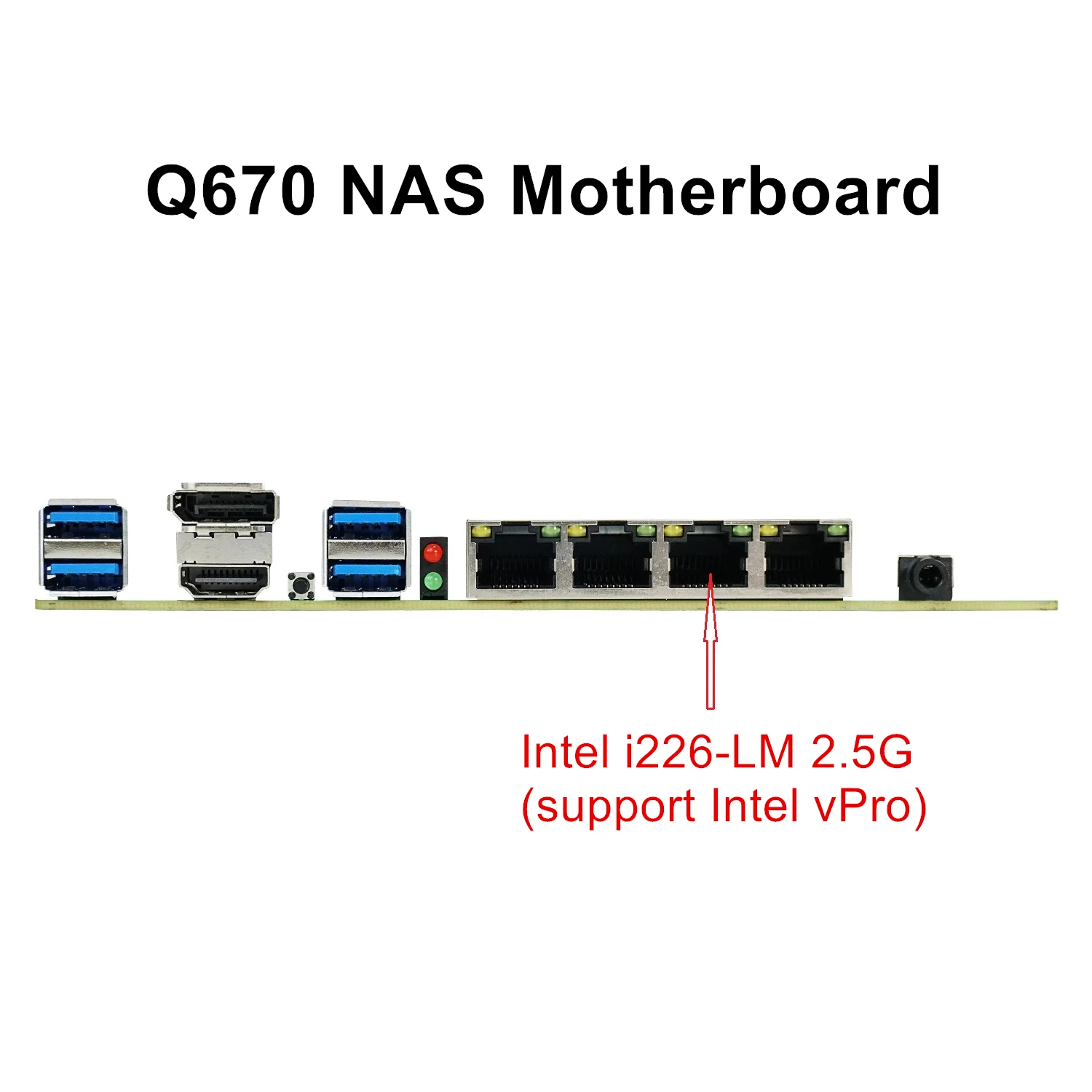

3*Intel i226-V 2.5G, 1*Intel i226-LM 2.5G(support Intel vPro) |
||
|
Display Port |
1*DP port; 1*HD port |
1*DP port; 1*HD port |
||
|
Display Chip |
Integrated Intel UHD Graphics (Depends on the processor) |
Integrated Intel UHD Graphics (Depends on the processor) |
||
|
Expansion slot |
1*PCIe x4 Gen4 |
1*PCIe x4 Gen4 |
||
|
Other functions |
Power-on boot; Scheduled boot; Wake-up on LAN; PXE boot; Watchdog |
Power-on boot; Scheduled boot; Wake-up on LAN; PXE boot; Watchdog |
||
|
Power Supply |
24Pin+4Pin ATX |
24Pin+4Pin ATX |
||
|
PCB Size |
170*170(mm)-Mini ITX |
170*170(mm)-Mini ITX |
